How Do Armoured Cables Enhance Safety and Durability in Challenging Environments?

In modern infrastructure, the type of cable used makes all the difference where reliability and safety are prime concerns. From industrial plants to underground installations and offshore projects, cables are continuously subjected to severe physical, chemical, and environmental stresses. Thats where armoured cables come in, offering superior protection, strength, and longevity. These cables are designed to bear mechanical stress, moisture, corrosion, and other environmental hazards to ensure continuity in power transmission and operational safety.

In this blog, we explore what Armoured Cables are, the structure of armoured cables, and types of armoured cables, but most importantly, how they enhance safety and durability in challenging environments.

What are armoured cables?

Armoured power cables as per the armoured cable supplier are specialty cables that incorporate extra protective layers in the form of either steel wires or steel tapes between the cable insulation and outer sheathing, in addition to normal cable insulation and outer sheathing. This extra layering mainly provides mechanical shielding for inner conductors against impact, compression, rodents, and even environmental stress.

Unlike regular cables, armoured ones are designed for mechanical protection and high tensile strength, making them suitable for underground installation, industrial purposes, and areas where mechanical wear and tear occur.

Armoured Cable Construction

Now, to understand how armoured cables work during these harsh conditions, their basic structure will be highlighted.

Conductor:

Electricity moves through a core composed of either copper or aluminium. Copper can be preferred because of its high conductivity and flexible nature.

Insulation:

The insulation of the conductor with insulating materials like PVC, XLPE, or EPR features prevents current leakage and short circuits.

Bedding Inner Sheath

It separates the insulation from the armour and provides mechanical cushioning.

Armour Layer:

Normally made from galvanized steel wire (SWA) or steel tape (STA), this defining feature resists physical damage and adds further strength to the cable.

Outer Sheath (Jacket):

The final, protective covering that generally is in PVC or PE material resists environmental elements like water and chemicals and UV radiation.

Each layer has an important role in keeping the cable operationally reliable and safe under the most severe conditions.

Types of Armoured Cables

Variations in armoured cables are used in different industries and installations. Some of the most used variants are:

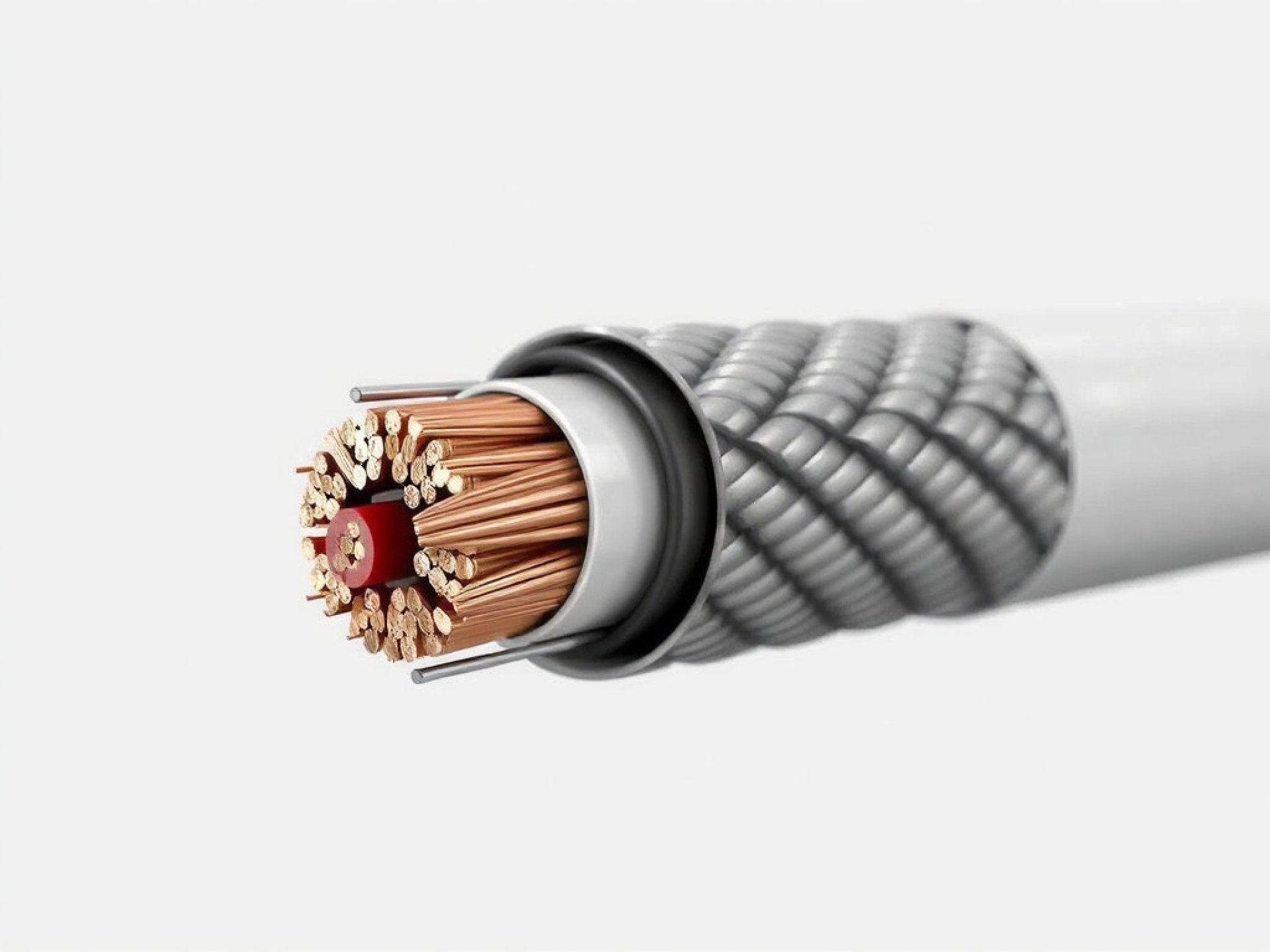

Steel Wire Armoured (SWA) Cable:

• Commonly used for industrial power distribution and underground installations.
• It has excellent mechanical resistance to impacts and stresses.
• They are usually applied for medium- and low-voltage applications.

Steel Tape Armoured (STA) Cable:

• Used indoors or in less physically demanding environments.

• It provides flexible but strong mechanical protection.


Aluminum Wire Armoured (AWA) Cable:

• Primarily used with single-core cables to avoid magnetic interference.
• Lighter than steel, making it suitable for large installations and long runs.


• Finds applications in chemical plants or in any other marine application, with higher conductivity and corrosion resistance.

Why Armoured Cables Are Important in Harsh Environments

In industry or outdoors, cables very often face extreme conditions such as moisture, heat, chemicals, heavy machinery, or pressure. Armoured cables are designed with all such considerations in mind. Here is how they contribute to safety and durability in even the most challenging environments:

1. Superior Mechanical Protection

One of the more critical advantages of armoured cables is their resistance to mechanical damage. In fact, the armour layer made from steel or aluminum prevents the following types of damage:

• Accidental impacts or crushing
• Excavation activities in underground installations
• Heavy equipment movement
• Rodent attacks or gnawing

This provides mechanical protection and thus supplies power continuously while minimizing the likelihood of electrical failure or short-circuiting.

2. Enhanced Electrical Safety

Armoured cables have a very wide application, starting from domestic to industrial levels for ensuring electrical safety. The armoring provides a protective earth conductor so that fault currents directly flow to the ground. This will reduce the possibility of electric shock, fire, and damage to equipment.

Besides, the insulation materials like XLPE or PVC withstand high temperatures and voltage fluctuations that may result in electrical breakdowns, thus guaranteeing continuity.

3. Resistance to environmental factors

Outdoor and underground cables are subjected to a number of environmental stresses:

• Moisture and water ingress
• Temperature fluctuations
• Chemical exposure Corrosion and UV radiation
• Armoured cables are designed for such conditions.

The outer sheath will be of corrosion- and UV-resistant material, and the armour prevents moisture and chemical effects from reaching inside. That is why they find broad applications in marine, offshore, and industrial zones where normal cables would deteriorate within a very short period.

4. Longer Service Life and Cost Efficiency

While being a little more expensive to buy compared to many other types of standard cables, armoured cables are also much more cost-efficient in the longer term. Their robustness reduces the need for frequent repairs or replacements or maintenance downtimes.

Long service life often means, in particular, lower operational costs for armoured cables since replacement of cables is frequently quite difficult or expensive in conditions such as tunnels, mines, and subsea installations.

5. Fire resistance and heat tolerance

Most of today's armoured cables are fire-resistant or flame retardant. This means that in case of a fire, the cable can function for a certain period within which one would have been able to evacuate and shut down safely. Besides, materials such as XLPE insulation provide superior thermal resistance, maintaining performance at high temperatures while avoiding melting or short-circuiting.

6. Suitable for Underground and Subterranean Installations

Most of the challenges with underground cabling involve soil pressure, rocks, and moisture. Armoured cables are specially designed to bear such stresses without performance compromise. The armour layer distributes the mechanical load across it evenly to avoid conductor damage, while the outer sheath keeps moisture and chemicals off. That makes armoured cables ideal in the fields of power transmission, telecommunications, oil refineries, and rail networks.

Conclusion

In conditions whereby cables are exposed to physical, mechanical, or environmental stressors, armoured cables are not options but necessities. With their robust construction, superior safety features, and resilience to challenging conditions, they find perfect application in industrial, commercial, and underground uses. An investment in high-quality armoured cables assures industry continuity of operation and electrical safety, translating into long-term cost savings.

Armoured cables power heavy machinery, run data connections, and sometimes even transmit electricity over long distances with reliability and resilience, meeting the demands of modern times for a robust infrastructure. In short, armoured cables are the backbone of safe and durable electrical systems, engineered to protect, perform, and last through the toughest environments.
